제품 상세 정보:
|
| 키워드: | 물 처리 | 재료: | 금속 |
|---|---|---|---|
| 보증: | 1년이요 | 상태: | 새롭습니다 |
| 애프터 서비스: | 온라인 지원 | 발언: | OEM은 생존 가능합니다 |
| 강조하다: | 1500개 하루당 갤런 정제수 장비,역삼투 정제수 장비,UV 살균기 정제수 장비 |
||

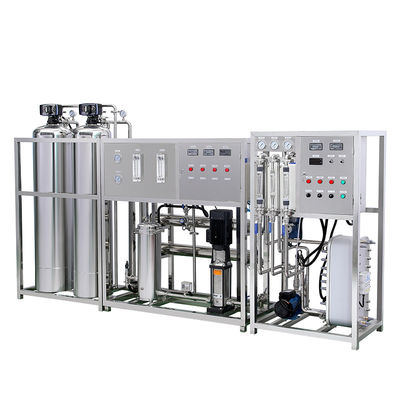

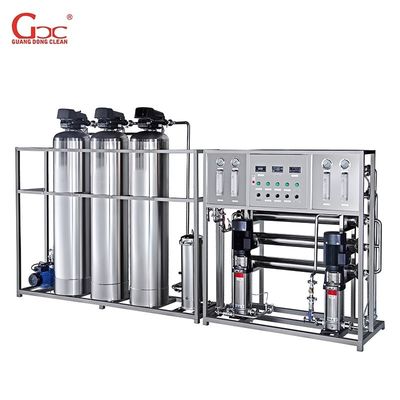

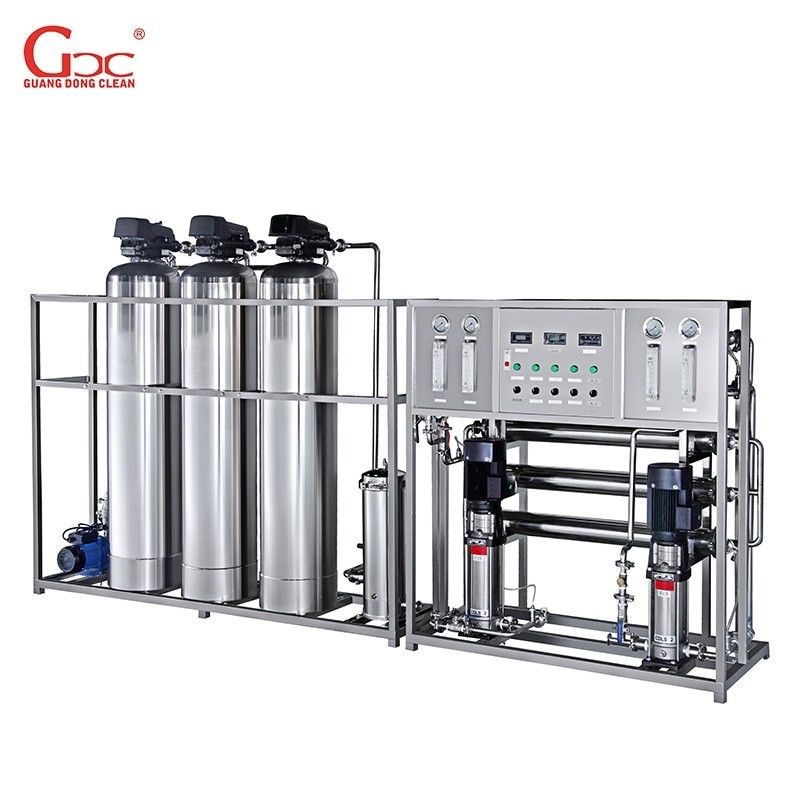

Pure Water Treatment For Hotel
Which machine should I choose?
It depends on your raw water quality ,pure water requirement and the water production you need.
You can tell me about our local water quality and water needs, we will provide you with the best solution for you.
RO water treatment system principle
The principle of RO water treatment system is that raw water passes through reverse osmosis membrane under high pressure, and the solvent in water diffuses from low concentration to high concentration to achieve the purpose of separation, purification and concentration. Reverse osmosis water treatment system can remove bacteria, viruses, colloid, organic matter and more than 99% soluble salts in water. The equipment has the characteristics of low operation cost, simple operation, high automation degree and stable effluent quality. Compared with other traditional water treatment methods, it has obvious advantages and is widely used in water treatment related industries.
Parameter
Capacity (Minimum) | Membrane Quantity | Inlet Pipe | Motor |
1500 GPD (250LPH) | 4040*1 | 3/4" | 1.0HP |
3000 GPD (500LPH) | 4040*2 | 3/4" | 1.0HP |
6000 GPD (1000LPH) | 4040*4 | 1" | 2.0HP |
12000 GPD(2000LPH) | 4040*8 | 1-1/2" | 3.0HP |
18000 GPD (3000LPH) | 4040*12 | 1-1/2" | 4.0HP |

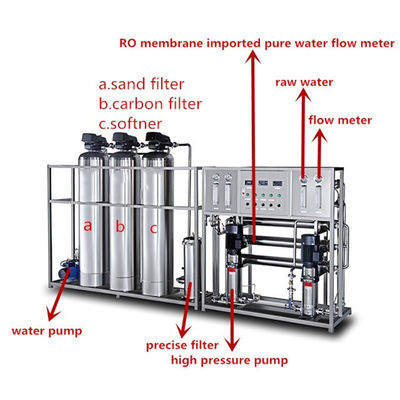

Pretreatment: Main Machine of Water Treatment:
(1) Quartz sand/manganese sand filter; (1) Pumps;
(2) Activated Carbon filter; (2) RO membrane (DOW/CSM/Hydranautics);
(3) Softener and PP Filter ; (3) Membrane Vessel(SS and FRP);
(4) Dosing system if need. (4) PLC control/Relay control;
(5) Optional UV sterlilizer&Ozone.

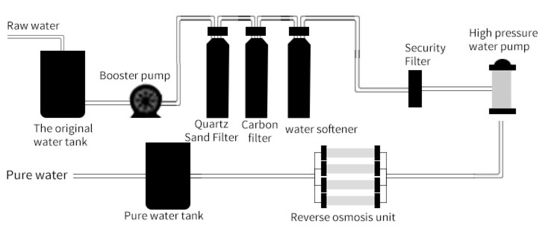

Working Process
1. Raw water booster pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Multi-medium filter--get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Water softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure water pump--Provide the high pressure to RO membrane ro.
7. Reverse osmosis unit-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
RO separation process has its unique advantages
1. Pressure is the main force in RO separation process, which does not go through the phase transition of energy intensive exchange and has low energy consumption;
2. RO does not need a lot of precipitants and adsorbents, and its operating cost is low;
3. RO separation engineering is simple in design and operation and short in construction period;
4. RO purification efficiency is high and environmentally friendly. Therefore, RO technology has been widely used in domestic and industrial water treatment, such as desalination of seawater and brackish water, production of medical and industrial water, preparation of pure and ultra-pure water, industrial wastewater treatment, etc.
Application
Widely used in various industrial sectors.
Precision filter
It can ensure that the granularity of the water into reverse osmosis membrane is less than 0.1um.
Customer Service
* Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
* Your inquiry related to our products or price will be replied in 24hrs.
* Keep informing our customer production process and help arrange quality checking in the factory if necessary.
* Two-year warranty to our display and one-year warranty to spare parts.
* Buyer can dispatch technician to our factory for free training before delivery.
* For essential equipment failure, we will arrange our engineer head to local site to help trouble shooting, also provide online technical support for the whole life.
